Detail :: Data Jembatan

Jembatan Qingshuihe

Panjang1.130,00 m
Bentang Terpanjang1.130,00 m
Kondisi UmumProgress
Jenis JembatanGantung
Tanggal Selesai2016
Tanggal Peresmian2016
Latitude (GPS)27.0308230000000000
Longitude (GPS)107.1874780000000000

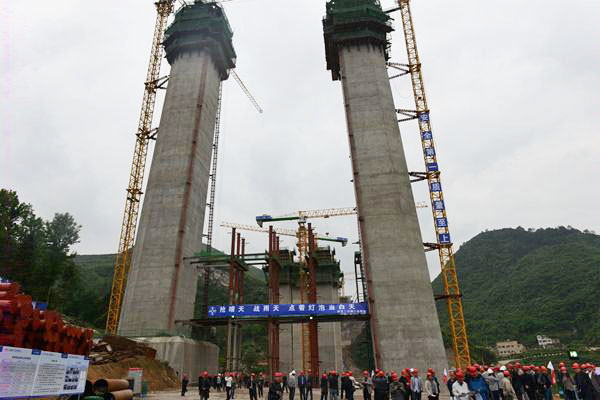

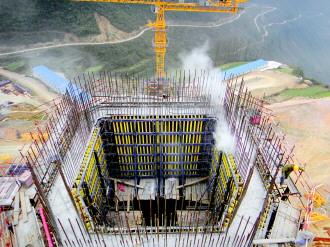

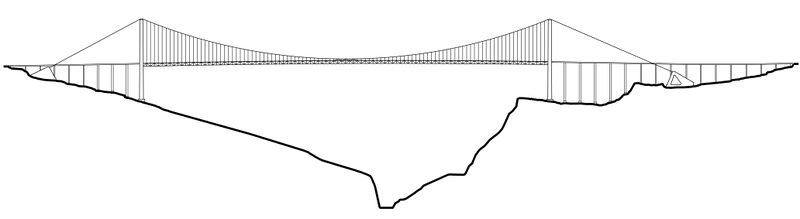

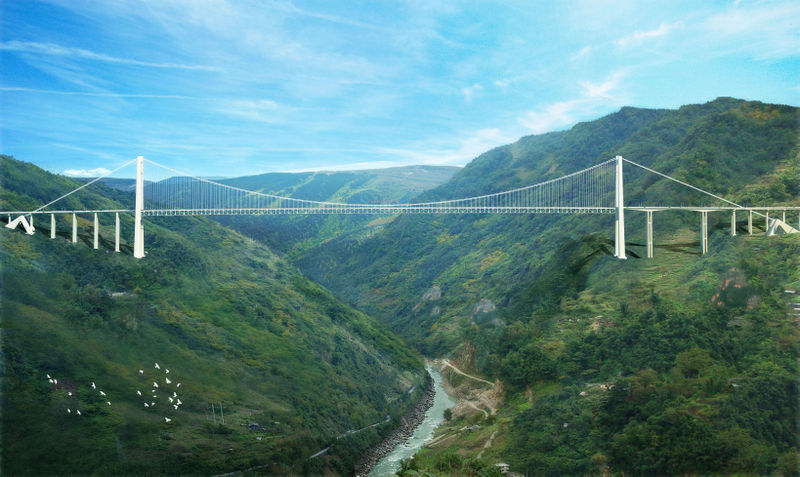

In 2016 Qingshuihe Bridge will surpass Balinghe Bridge as the highest and longest suspension span in Guizhou Province. The giant new crossing is part of the Guiweng expressway 贵瓮高速公路 that will connect the capital city of Guiyang with Weng'an. The 230 and 224 meter tall towers support a steel truss main span of 1,130 meters that ranks among the 20 longest spans on earth.

An alternate Qingshui River crossing several kilometers to the south was studied that would have had an even greater deck height but the main span would have been much smaller. The highway planners may well have decided to go with the northern route knowing their bridge could then become an even bigger and higher "sequel" to the famous Balinghe Bridge.

Qingshuihe Bridge is one of at least a dozen major suspension bridges that have opened in China since 2009 that have span lengths of approximately a kilometer or longer and deck heights of 200 to 500 meters.
