Detail :: Data Jembatan

Jembatan Agen Canal



Panjang539,00 m
Lebar12,48 m
Bentang Terpanjang20,00 m
Kondisi UmumAktif
Jenis JembatanPelengkung
Tanggal Mulai1839
Tanggal Selesai1847
Tanggal Peresmian1847
NegaraFrance
Latitude (GPS)44.2077780000000000
Longitude (GPS)0.6055559999999787

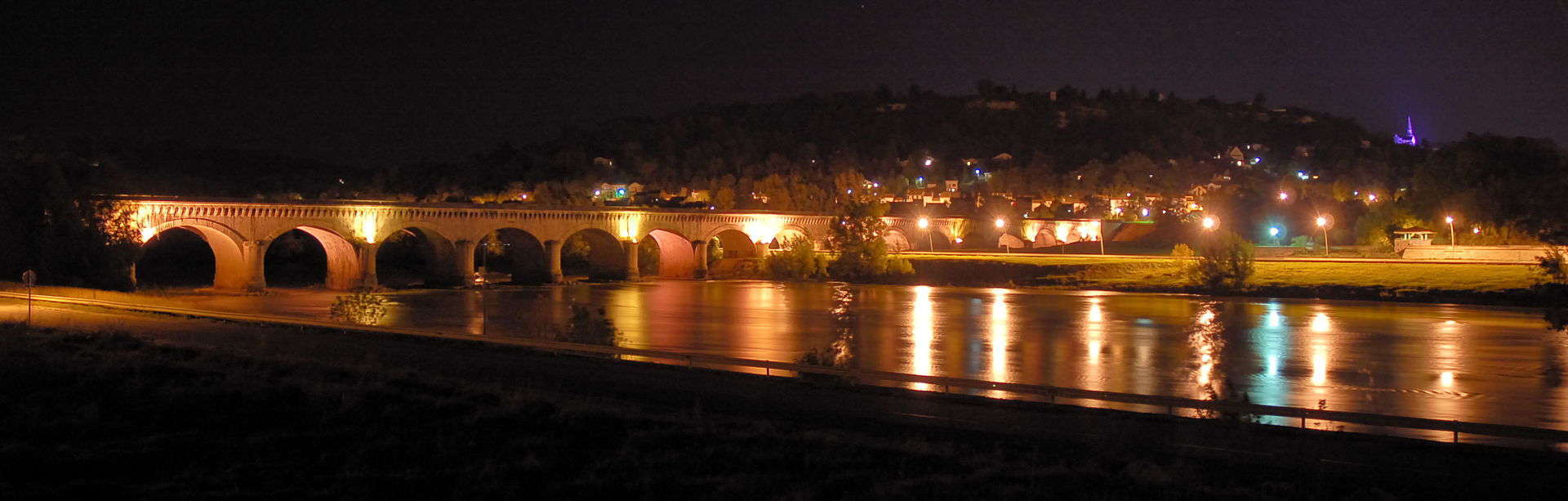

The Agen Aqueduct is an aqueduct which carries the canal de Garonne across the Garonne. It is located in the Agen commune, in the Aquitaine region of France.

Description[edit]

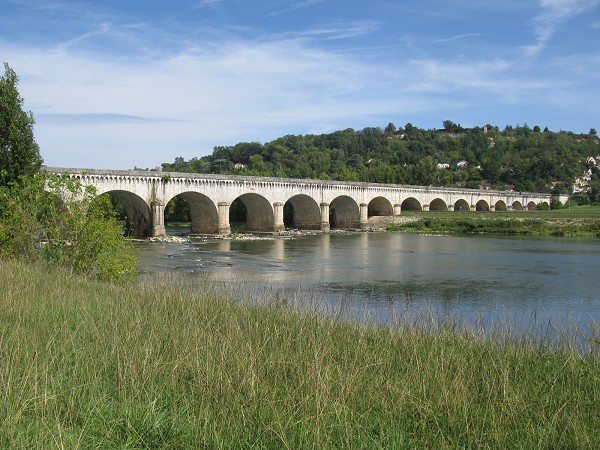

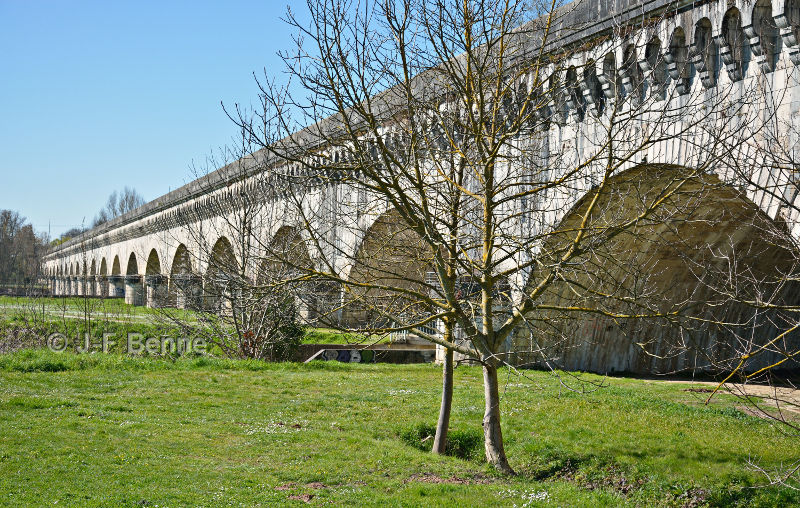

The aqueduct is a dressed stone masonry structure consisting of 23 arches, each of 20m span, which at the time of its completion was the longest navigable aqueduct in France. It has a length of 539 metres, a width of 12.48m and a canal width of 8.82m.[1]

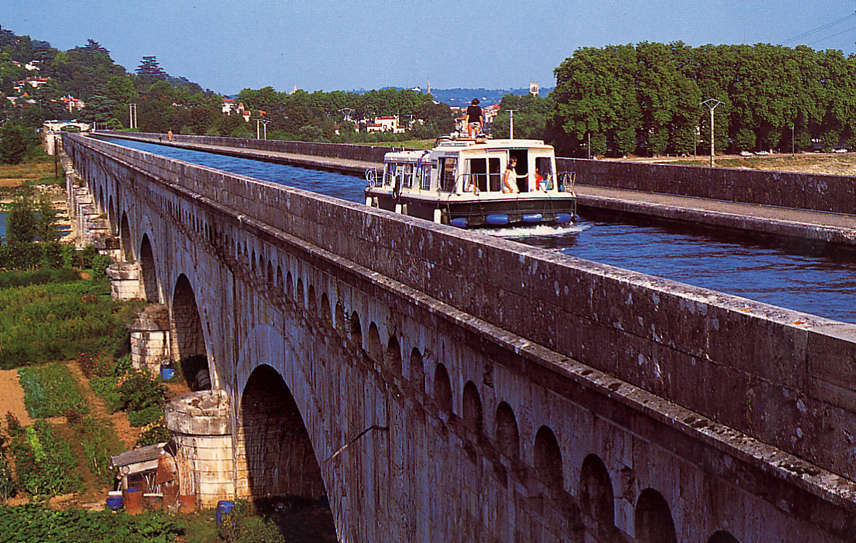

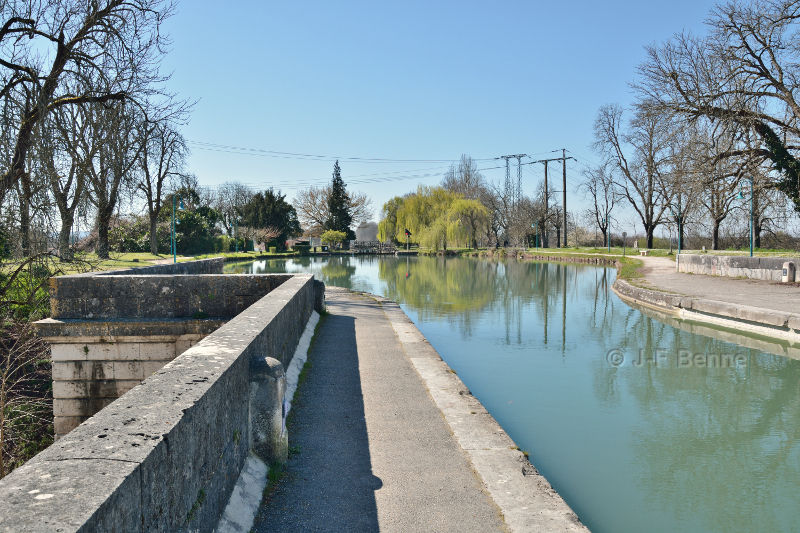

The width of the channel is insufficient to allow boats to pass each other whilst on the aqueduct. Boats must wait for oncoming traffic to clear the aqueduct before crossing. There is a lock and a canal basin downstream, and a canal basin upstream, of the aqueduct.

History[edit]

The aqueduct was built entirely of stone blocks from Quercy, under the direction of the engineer Jean-Baptiste de Baudre. On 25 August 1839 Ferdinand Philippe, Duke of Orléans laid the first stone.[1] In 1841 the building of the Bordeaux to Toulouse railway interrupted work on the canal and the aqueduct was rented to farmers for use as a short cut avoiding the Bridge of Agen. The tolls however, were too high to make this idea work. On the 5th May 1846 the work was ordered to resume by a vote in favour of a government act. The aqueduct finally came into service in 1849



Sumber :
http://en.wikipedia.org/wiki/Agen_aqueduct
