Detail :: Data Jembatan

Jembatan Hardanger

Panjang1.380,00 m
Lebar20,00 m
Bentang Terpanjang1.310,00 m
Kondisi UmumAktif
Jenis JembatanGantung
Tanggal Mulai2009
Tanggal Selesai2013
Latitude (GPS)60.4788970000000000
Longitude (GPS)6.8295890000000000

Hardanger Bridge is a bridge between Ullensvang and Ulvik in Hordaland, Norway, across the Hardangerfjord. It replaced a ferry connection between Bruravik and Brimnes, and shortens the driving time between Oslo and Bergen. It is the longest suspension bridge in Norway.


The bridge was approved by the Norwegian Parliament on February 28, 2006, and construction began on February 26, 2009.[1] While the bridge was engineered by the Norwegian Public Roads Administration, the construction is done by MT Højgaard.[2] The project had a budget of 2.3 billion kroner (€290 million) and more than half of this will be paid by toll and saved ferry subsidies.[3]

The ferry, serviced by Fjord1, ran across the fjord every 20–60 minutes depending on the season, and the trip lasted 10 minutes.

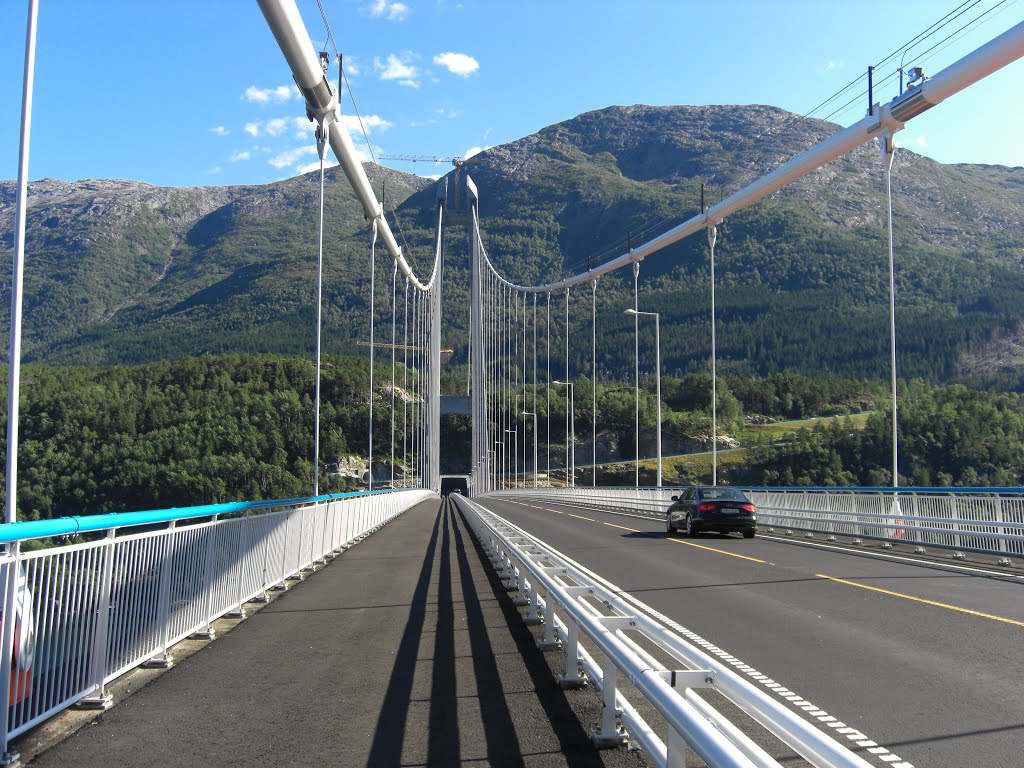

The bridge is 1,380 metres (4,530 ft) long, with a main span of 1,310 metres (4,300 ft). Sailing height is 55 metres (180 ft) and the towers reach 200 metres (660 ft) above sea level. There are two driving lanes for cars with an 80 km/h speed limit, and a separate lane for pedestrians and cyclists.[4]

The traffic on the bridge is only estimated for 2000 vehicles per day.[4] The opening of the bridge took place on 17 August 2013.

The main span is one of the longest suspension bridge spans in the world.[5] It is also the longest tunnel to tunnel suspension bridge in the world with a 2.5 km tunnel on the south side of Bu and a 7.5 km tunnel on the north side of Vallavik.

Sumber :

Galeri Foto
