Jembatan Confederation
Panjang 12.900,00 m Bentang Terpanjang 250,00 m Kondisi Umum Aktif Jenis Jembatan Concrete Box Girder Tanggal Mulai Oktober 1993 Tanggal Selesai Mei 1997 Tanggal Peresmian 31 Mei 1997 Biaya Rp. 13.500.046.794.000,00 Negara Canada Latitude (GPS) 46.2152780000000000 Longitude (GPS) -63.7458330000000000
Jembatan Confederation

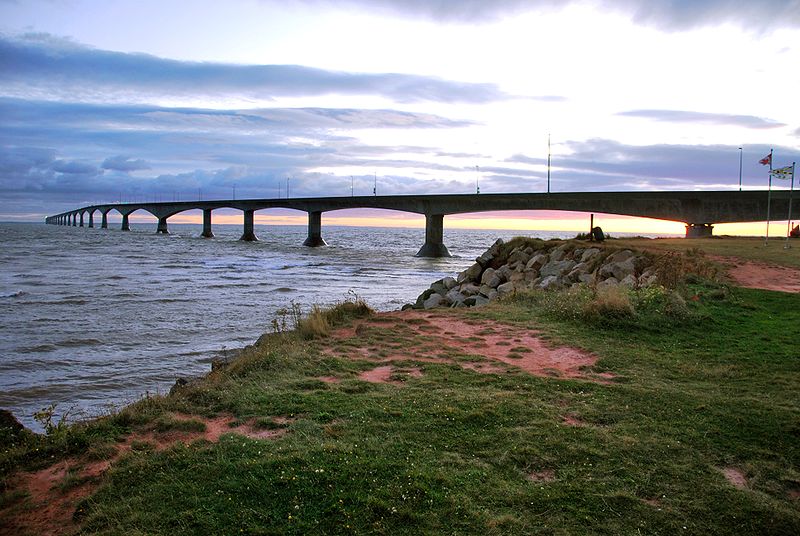

The Confederation Bridge (French: Pont de la Confédération) spans the Abegweit Passage of Northumberland Strait. It links Prince Edward Island with mainland New Brunswick, Canada. Before its official naming, Prince Edward Islanders often referred to the bridge as the "Fixed Link". Construction took place from October 1993 to May 1997 [2]and cost C$1.3 billion. The 12.9-kilometre (8 mi) bridge opened on 31 May 1997.[3]
Structure

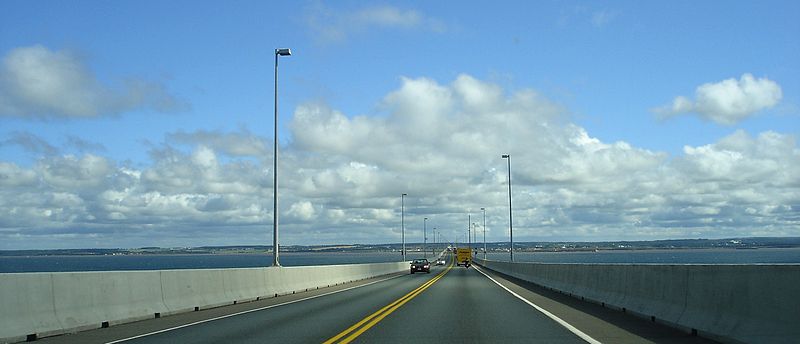

The bridge is a two-lane toll bridge that carries the Trans-Canada Highway between Borden-Carleton, Prince Edward Island (at Route 1) and Cape Jourimain, New Brunswick (at Route 16).

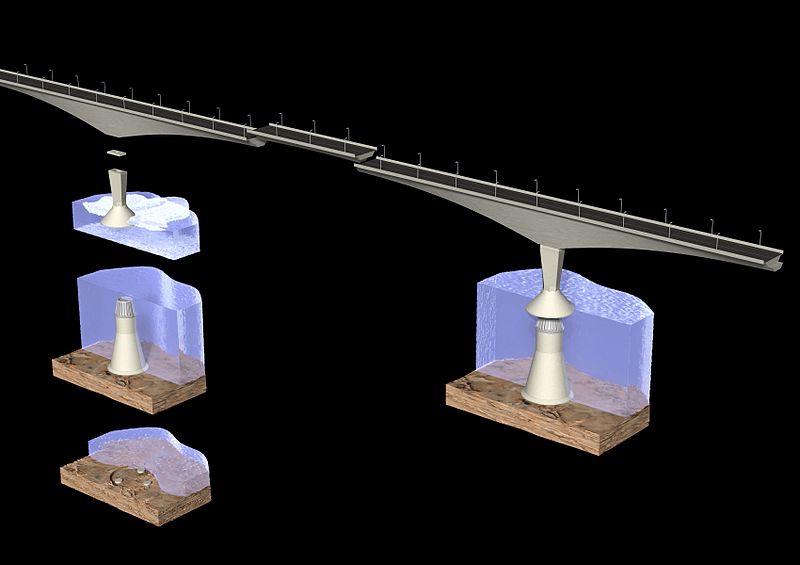

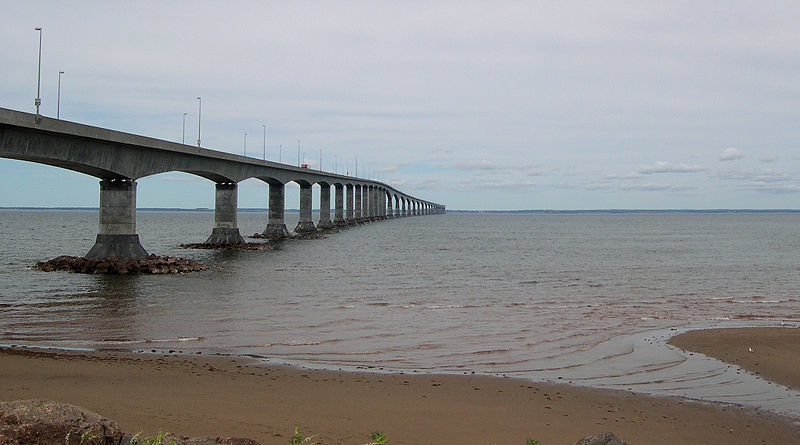

It is a multi-span beam bridge with a post-tensioned concrete box girder structure. Most of the curved bridge is 40 metres (131 ft) above water with a 60 m (197 ft) navigation span for ship traffic. The bridge rests on 62 piers, of which the 44 main piers are 250 m (820 ft) apart. The bridge is 11 m (36 ft) wide.
The speed limit on the bridge is 80 kilometres per hour (50 mph). It takes about 12 minutes to cross the bridge.
Sumber :
http://en.wikipedia.org/wiki/Confederation_Bridge
